macOS 11 Big Sur Nginx Setup: Multiple PHP Versions

Create a very robust, clean, and fast local multi-version PHP (7.4, 8.0, 8.1) development environment on macOS Big Sur with Intel or Apple M1 chipsets.

#Web #Mac #PHP #Servers

macOS 11 Big Sur Nginx Setup: Multiple PHP Versions

Important Note: There is an updated tutorial for installing multiple versions of PHP with nginx on macOS 12 Monterey.

In this tutorial, we will take the following steps and create a very robust, clean, and fast local multi-version PHP (7.4, 8.0, 8.1) development environment on macOS Big Sur with Intel or Apple M1 chipsets:

Install Xcode, VS Code & Homebrew *: This step is required to get started.
Install openSSL & wget *: This step is required to get started.
Install MySQL: This step is not required, but MySQL and PHP are like PB & J.
Install PostgreSQL: This step is not required, but I personally use PostgreSQL, so its here.
Install PHP Versions *: This is the meat.
Install Xdebug: This is an awesome tool I highly recommend.
Install Nginx *: This step is required and is super in-depth, so you get SSL/TLS certs and custom local domains.
Install Dnsmasq *: This step is required for those custom domains.
Install MailHog: This tool is excellent that you will love if you send email during local development. It catches emails and provides a nice looking UI to view them.
Install Redis: This is recommended if you are doing Laravel work.

Setup: Xcode, VS Code, & Homebrew

Before starting you need a few tools installed to take the stress out of the setup process: Xcode, VS Code, and Homebrew.

First, install Xcode. Next, install the CLI tools from the terminal. We will be using the terminal a lot coming up (I like iTerm2).

bash

xcode-select --install

Also, you will need VS Code installed with the code command in your system path.

Finally, install Homebrew.

bash

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install.sh)"

Homebrew will ask you to run a few commands, don't miss them.

Now, that the tools are installed, you can get into the rest of the setup process.

OpenSSL & wget

Install OpenSSL.

bash

brew install openssl
brew install wget

MySQL

Install MySQL.

bash

brew install mysql
brew services start mysql
brew services list

Next, update your my.cnf

bash

# Intel x86 Chipset
code /usr/local/etc/my.cnf

bash

# Apple Silicon M1 Chipset
code /opt/homebrew/etc/my.cnf

bash

# Default Homebrew MySQL server config
[mysqld]
# Only allow connections from localhost
bind-address = 127.0.0.1
mysqlx-bind-address = 127.0.0.1

# Add mode only if needed
sql_mode = "ONLY_FULL_GROUP_BY,ERROR_FOR_DIVISION_BY_ZERO,NO_ENGINE_SUBSTITUTION"

Now, secure using the password password and then restart.

bash

mysql_secure_installation
brew services restart mysql

Next, MySQL 8 authentication needs to be updated per user to mysql_native_password. Note, there is no space before the username and password.

bash

mysql -uroot -ppassword
mysql> ALTER USER 'root'@'localhost' IDENTIFIED WITH mysql_native_password BY 'password';

Postgres

Install postgresql (not the postgres app).

bash

brew install postgresql
brew services start postgresql
brew services list
psql postgres

Now, you can check your user list.

bash

postgres-# \du

PHP

Don't use the default homebrew core tap for PHP. Use shivammathur/php.

bash

brew tap shivammathur/php

brew install shivammathur/php/php@7.2
brew install shivammathur/php/php@7.3
brew install shivammathur/php/php@7.4
brew install shivammathur/php/php@8.0
brew install shivammathur/php/php@8.1

Next, set PHP 7.4 as your default php CLI version.

bash

brew unlink php
brew link --overwrite --force php@7.4

Now, for each version update the php-fpm you will need a unique port. Change the ports of each php-fpm to match its php version number. For example, php@7.4 I use port 9074.

Also, you will want php-fpm to run with your user account and not _www. Note, the folder path difference is based on the Mac processor your computer has (Intel x86 or Apple M1 ARM).

bash

# Intel x86 Chipset
code /usr/local/etc/php/7.4/php-fpm.d/www.conf

bash

# Apple Silicon M1 Chipset
code /opt/homebrew/etc/php/7.4/php-fpm.d/www.conf

bash

# default
user = _www
group = _www
listen = 127.0.0.1:9000

# change to
user = <your_username>
group = staff
listen = 127.0.0.1:9074

Optionally, before starting php-fpm, if you want to make edits to a php.ini file now is the time. For example, you might want to increase the upload_max_filesize and post_max_size to 10M.

Again, note the path based on the chipset.

bash

# Intel x86 Chipset
/usr/local/etc/php/7.2/php.ini
/usr/local/etc/php/7.3/php.ini
/usr/local/etc/php/7.4/php.ini
/usr/local/etc/php/8.0/php.ini
/usr/local/etc/php/8.1/php.ini

bash

# Apple Silicon M1 Chipset
/opt/homebrew/etc/php/7.2/php.ini
/opt/homebrew/etc/php/7.3/php.ini
/opt/homebrew/etc/php/7.4/php.ini
/opt/homebrew/etc/php/8.0/php.ini
/opt/homebrew/etc/php/8.1/php.ini

Once you are ready, start-up php-fpm for each version.

bash

brew services start php@7.2
brew services start php@7.3
brew services start php@7.4
brew services start php@8.0
brew services start php@8.1

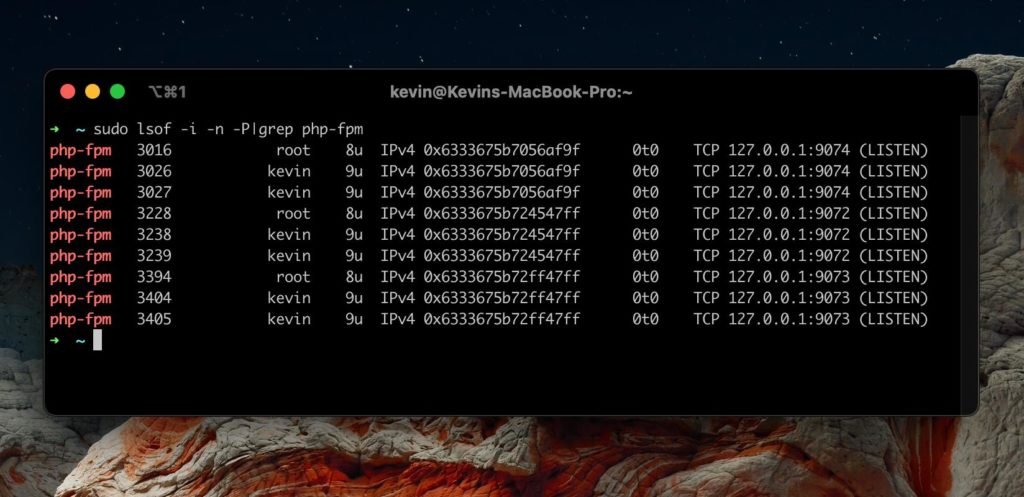

Check that you have processes running and validate your ports are correct.

bash

sudo lsof -i -n -P|grep php-fpm

Alias multiple PHP versions

Next, and optionally, add some PHP CLI aliases by adding the following to the bash scripts within your .bashrc or .zshrc file. This will give you quick access to a specific version when needed.

bash

# Intel x86 Chipset
alias php72="/usr/local/opt/php@7.2/bin/php"
alias php73="/usr/local/opt/php@7.3/bin/php"
alias php74="/usr/local/opt/php@7.4/bin/php"
alias php80="/usr/local/opt/php@8.0/bin/php"
alias php81="/usr/local/opt/php@8.1/bin/php"

bash

# Apple Silicon M1 Chipset
alias php72="/opt/homebrew/opt/php@7.2/bin/php"
alias php73="/opt/homebrew/opt/php@7.3/bin/php"
alias php74="/opt/homebrew/opt/php@7.4/bin/php"
alias php80="/opt/homebrew/opt/php@8.0/bin/php"
alias php81="/opt/homebrew/opt/php@8.1/bin/php"

Once you reload your bash file, you can access each alias from the Mac command line. For example, you can check the exact version of the aliased version of PHP.

bash

php72 -v

Switching Between Multiple PHP Versions

You can add the following to your bash scripts, to make switching between multiple PHP versions on macOS simple:

bash

# Make switching versions easy
function phpv() {
    brew unlink php
    brew link --overwrite --force "php@$1"
    php -v
}

If you want to change the default php CLI you can set it using brew or if added, the bash function phpv 7.4.

bash

# brew
brew unlink php
brew link --overwrite --force php@7.4

# bash function
phpv 7.4

Homebrew Upgrade PHP Errors

As time passes Homebrew is bound to break your PHP installations. When this happens you can reinstall the PHP version having the error. Keep in mind you may need to reconfigure that version of PHP but I've found your php.ini files remain the same.

bash

brew reinstall shivammathur/php/php@7.4

Xdebug

Now, I like xdebug for development. But, this step is optional. To install xdebug for each version of php (cli and fpm) run the following.

bash

brew link --overwrite --force php@7.2
pecl uninstall -r xdebug
pecl install xdebug

bash

brew link --overwrite --force php@7.3
pecl uninstall -r xdebug
pecl install xdebug

bash

brew link --overwrite --force php@7.4
pecl uninstall -r xdebug
pecl install xdebug

bash

brew link --overwrite --force php@8.0
pecl uninstall -r xdebug
pecl install xdebug

bash

brew link --overwrite --force php@8.1
pecl uninstall -r xdebug
pecl install xdebug

For each version, you have installed update the php.ini. In our example, php@7.4.

bash

# Intel x86 Chipset
code /usr/local/etc/php/7.4/php.ini

bash

# Apple Silicon M1 Chipset
code /opt/homebrew/etc/php/7.4/php.ini

You will need to remove the zend_extension="xdebug.so" that is added to the top of the file by the pecl install process. The new default xdebug port is 9003 – it was port 9000.

Add the following to the bottom of your php.ini file.

bash

[xdebug]
zend_extension="xdebug.so"
xdebug.mode=debug
xdebug.client_port=9003
xdebug.idekey=PHPSTORM

When finished adding your xdebug configuration to each version you have installed kill all the currently running php-fpm processes. This is not wise to do on a production server. On a new Mac dev setup, this is perfectly fine.

bash

sudo killall php-fpm

Nginx

Install nginx.

bash

brew install nginx
sudo nginx

Now test the install is working.

bash

http://localhost:8080

Now, change the default settings.

bash

# Intel x86 Chipset
code /usr/local/etc/nginx/nginx.conf

bash

# Apple Silicon M1 Chipset
code /opt/homebrew/etc/nginx/nginx.conf

bash

# From
listen 8080;
server_name  localhost;
index index.html;

# To
listen 80;
server_name  localhost test.x;
index index.html index.htm index.php;

Next, add a FastCGI gateway to php-fpm on the default server. The latest version of php installed is best. For other servers, you can set the version of PHP to the project requirement.

nginx

location ~ \.php$ {
  fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
  include fastcgi_params;
  fastcgi_pass 127.0.0.1:9074;
  fastcgi_split_path_info ^(.+\.php)(/.+)$;
}

Next, add some basic security to your default server.

nginx

add_header X-Frame-Options "SAMEORIGIN";
add_header X-XSS-Protection "1; mode=block";
add_header X-Content-Type-Options "nosniff";

Then add the charset.

nginx

charset utf-8;

Now, you might want to allow for large file uploads.

nginx

http {
    ...
    client_max_body_size 100M;
}

Next, we edit the real index.html file used by nginx. So, replace the index.html with an index.php file. Then, and some php code to make sure everything is working.

bash

mv /usr/local/var/www/index.html /usr/local/var/www/index.php
code /usr/local/var/www/index.php

bash

mv /opt/homebrew/var/www/index.html /opt/homebrew/var/www/index.php
code /opt/homebrew/var/www/index.php

php

<?php echo phpinfo(); ?>

Reload nginx.

bash

sudo nginx -s reload

bash

http://localhost

To add more servers you can go to the nginx servers directory, Intel as /usr/local/etc/nginx/servers and M1 as /opt/homebrew/etc/nginx/servers/, and add them there as individual files. Here is a basic Intel template and one for M1 Macs.

To keep things organized, you will want to create an SSL folder to hold your future SSL certs.

bash

mkdir /usr/local/etc/nginx/ssl/

bash

mkdir /opt/homebrew/etc/nginx/ssl/

nginx

server {
    listen 443 ssl http2;
    listen [::]:443 ssl http2;

    ssl_certificate      /usr/local/etc/nginx/ssl/{{host}}.crt;
    ssl_certificate_key  /usr/local/etc/nginx/ssl/{{host}}.key;
    ssl_ciphers          HIGH:!aNULL:!MD5;

    # listen       80;
    server_name {{host}};
    root   {{root}};

    add_header X-Frame-Options "SAMEORIGIN";
    add_header X-XSS-Protection "1; mode=block";
    add_header X-Content-Type-Options "nosniff";

    index index.html index.htm index.php;

    charset utf-8;

    location = /favicon.ico { access_log off; log_not_found off; }
    location = /robots.txt  { access_log off; log_not_found off; }

    access_log off;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    error_page 404 /index.php;

    location ~ \.php$ {
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        fastcgi_pass 127.0.0.1:9074;
        fastcgi_index index.php;
        include fastcgi_params;
    }

    location ~ /\.(?!well-known).* {
        deny all;
    }
}

nginx

server {
    listen 443 ssl http2;
    listen [::]:443 ssl http2;

    ssl_certificate      /opt/homebrew/etc/nginx/ssl/{{host}}.crt;
    ssl_certificate_key  /opt/homebrew/etc/nginx/ssl/{{host}}.key;
    ssl_ciphers          HIGH:!aNULL:!MD5;

    # listen       80;
    server_name {{host}};
    root   {{root}};

    add_header X-Frame-Options "SAMEORIGIN";
    add_header X-XSS-Protection "1; mode=block";
    add_header X-Content-Type-Options "nosniff";

    index index.html index.htm index.php;

    charset utf-8;

    location = /favicon.ico { access_log off; log_not_found off; }
    location = /robots.txt  { access_log off; log_not_found off; }

    access_log off;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    error_page 404 /index.php;

    location ~ \.php$ {
        fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        fastcgi_pass 127.0.0.1:9074;
        fastcgi_index index.php;
        include fastcgi_params;
    }

    location ~ /\.(?!well-known).* {
        deny all;
    }
}

To add SSL for your nginx server check out this post. I use these bash functions to make the process faster. To add a server I use the command nginxcreate my.test.x but you might want to modify the files to match your setup. Again, note the /usr/local/etc paths need to be changed to /opt/homebrew/etc if you are using an M1 Mac.

Here are the links to the server templates I created: Intel and M1.

bash

alias nginxreload="sudo nginx -s reload"
alias nginxrestart="sudo nginx -s stop && sudo nginx"
alias nginxservers="cd /usr/local/etc/nginx/servers"
alias nginxlist="ll /usr/local/etc/nginx/servers"

# nginxcreate text.x /Users/yourname/Code/laravel/public/
function nginxcreate() {
    wget https://gist.githubusercontent.com/kevindees/4e3508357ef46676f7635c545e4fd017/raw/f2c2f2716605e4b22a437058e2a7ebf5f8b775b9/nginx-server-template.conf -O /usr/local/etc/nginx/servers/$1.conf
    sed -i '' "s:{{host}}:$1:" /usr/local/etc/nginx/servers/$1.conf

    if [ "$2" ]; then
        sed  -i '' "s:{{root}}:$2:" /usr/local/etc/nginx/servers/$1.conf
    else
        sed  -i '' "s:{{root}}:$HOME/Sites/$1:" /usr/local/etc/nginx/servers/$1.conf
    fi

    nginxaddssl $1

    nginxrestart

    code /usr/local/etc/nginx/servers/$1.conf
 }

 function nginxaddssl() {
     openssl req \
        -x509 -sha256 -nodes -newkey rsa:2048 -days 3650 \
        -subj "/CN=$1" \
        -reqexts SAN \
        -extensions SAN \
        -config <(cat /System/Library/OpenSSL/openssl.cnf; printf "[SAN]\nsubjectAltName=DNS:$1") \
        -keyout /usr/local/etc/nginx/ssl/$1.key \
        -out /usr/local/etc/nginx/ssl/$1.crt

    sudo security add-trusted-cert -d -r trustRoot -k /Library/Keychains/System.keychain /usr/local/etc/nginx/ssl/$1.crt
 }

 function nginxedit() {
     code /usr/local/etc/nginx/servers/$1
 }

bash

alias nginxreload="sudo nginx -s reload"
alias nginxrestart="sudo nginx -s stop && sudo nginx"
alias nginxservers="cd /opt/homebrew/etc/nginx/servers"
alias nginxlist="ll /opt/homebrew/etc/nginx/servers"

# nginxcreate text.x /Users/yourname/Code/laravel/public/
function nginxcreate() {
    wget https://gist.githubusercontent.com/kevindees/deb3e2bdef377bbf2ffacbc48dfa7574/raw/1d5dc055fe87319a7f247808c9f9ee14c6abd9cd/nginx-server-template-m1.conf -O /opt/homebrew/etc/nginx/servers/$1.conf

    sed -i '' "s:{{host}}:$1:" /opt/homebrew/etc//nginx/servers/$1.conf

    if [ "$2" ]; then
        sed  -i '' "s:{{root}}:$2:" /opt/homebrew/etc/nginx/servers/$1.conf
    else
        sed  -i '' "s:{{root}}:$HOME/Sites/$1:" /opt/homebrew/etc/nginx/servers/$1.conf
    fi

    nginxaddssl $1

    nginxrestart

    code /opt/homebrew/etc/nginx/servers/$1.conf
 }

 function nginxaddssl() {
     openssl req \
        -x509 -sha256 -nodes -newkey rsa:2048 -days 3650 \
        -subj "/CN=$1" \
        -reqexts SAN \
        -extensions SAN \
        -config <(cat /System/Library/OpenSSL/openssl.cnf; printf "[SAN]\nsubjectAltName=DNS:$1") \
        -keyout /opt/homebrew/etc/nginx/ssl/$1.key \
        -out /opt/homebrew/etc/nginx/ssl/$1.crt

    sudo security add-trusted-cert -d -r trustRoot -k /Library/Keychains/System.keychain /opt/homebrew/etc/nginx/ssl/$1.crt
 }

 function nginxedit() {
     code /opt/homebrew/etc/nginx/servers/$1
 }

Dnsmasq

To save yourself the fuss of editing your hosts file constantly you can use dnsmasq. Note, the M1 has those new paths.

bash

brew install dnsmasq

Then we set up a custom hosts TLD *.x (or other hosts TLD like .test) that point to 127.0.0.1.

(customize the commands as needed)

bash

echo 'address=/.x/127.0.0.1' > /usr/local/etc/dnsmasq.conf

bash

echo 'address=/.x/127.0.0.1' > /opt/homebrew/etc/dnsmasq.conf

bash

sudo brew services start dnsmasq
sudo mkdir -v /etc/resolver
sudo bash -c 'echo "nameserver 127.0.0.1" > /etc/resolver/x'

Test that it is working.

bash

ping test.x

MailHog

I like to have mailhog running as a development mail server. But, if you don't want to take this step that is perfectly fine.

bash

brew install mailhog
brew services start mailhog

# start with
mailhog

Now, you can access MailHog at http://localhost:8025 /. However, you still need to connect MailHog to PHP and the mail mac command used by Postfix (Postfix comes with macOS Big Sur).

bash

code /etc/postfix/main.cf

Add the following to the end of the file to connect MailHog to Postfix.

bash

# MailHog
myhostname = localhost
relayhost = [127.0.0.1]:1025

Send a test email and check MailHog.

bash

echo "Test email from Postfix" | mail -s "Test Email" hi@example.com

Next, update each php.ini file with the following and then restart php-fpm. Note, test@localhost should be used but will be overridden by any PHP scripts that run. Note, the M1 has those new paths.

bash

sendmail_path = /usr/local/opt/mailhog/bin/MailHog sendmail test@localhost

bash

sendmail_path = /opt/homebrew/opt/mailhog/bin/MailHog sendmail test@localhost

bash

# Update your version number as needed
# 1.0.1 as of this writing
sendmail_path = /usr/local/Cellar/mailhog/1.0.1/bin/MailHog sendmail test@localhost

bash

sudo killall php-fpm

Redis

Install Radis. This will install Redis Server v6.

bash

brew install redis
brew services start redis
redis-server

Optionally, you can update your default dump.rdb file name in the redis.conf if you want. Note, the M1 has those new paths.

bash

code /usr/local/etc/redis.conf

bash

code /opt/homebrew/etc/redis.conf

bash

# The filename where to dump the DB
dbfilename dump.rdb

Dare To Code

Get the tips, links, and tricks on full-stack PHP development in your inbox from me: Kevin Dees.

"*" indicates required fields

Name* First Last Email*

Resources

https://github.com/shivammathur/homebrew-php

https://medium.com/@wvervuurt/how-to-run-multiple-php-versions-simultaneously-under-os-x-el-capitan-using-standard-apache-98351f4cec67

https://getgrav.org/blog/macos-bigsur-apache-multiple-php-versions

https://litebreeze.com/software-development/install-nginx-mariadb-in-macos/

https://medium.com/@ThomasTan/installing-nginx-in-mac-os-x-maverick-with-homebrew-d8867b7e8a5a

https://serverfault.com/questions/845766/generating-a-self-signed-cert-with-openssl-that-works-in-chrome-58

https://github.com/openssl/openssl/issues/3363

https://www.moncefbelyamani.com/how-to-install-postgresql-on-a-mac-with-homebrew-and-lunchy/

https://dev.to/ravishan16/brew-redis-on-mac-1ni8

https://blog.menincode.com/en/how-to-configure-your-mailhog-and-postfix-on-mac-os-mojave/

Setup: Xcode, VS Code, & Homebrew ​

OpenSSL & wget ​

MySQL ​

Postgres ​

PHP ​

Alias multiple PHP versions ​

Switching Between Multiple PHP Versions ​

Homebrew Upgrade PHP Errors ​

Xdebug ​

Nginx ​

Dnsmasq ​

MailHog ​

Redis ​

Dare To Code ​

Resources ​

Setup: Xcode, VS Code, & Homebrew

OpenSSL & wget

MySQL

Postgres

PHP

Alias multiple PHP versions

Switching Between Multiple PHP Versions

Homebrew Upgrade PHP Errors

Xdebug

Nginx

Dnsmasq

MailHog

Redis

Dare To Code

Resources
